Mass Noise Liner

Stage 2 Premium underlay, firewall sound blanket
Mass Noise Liner x 1sheet
Mass Noise Liner x 1sheet 1 Sheet @ 1600mm x 950mm

$119.99


Quantity Deal


Calculate Shipping

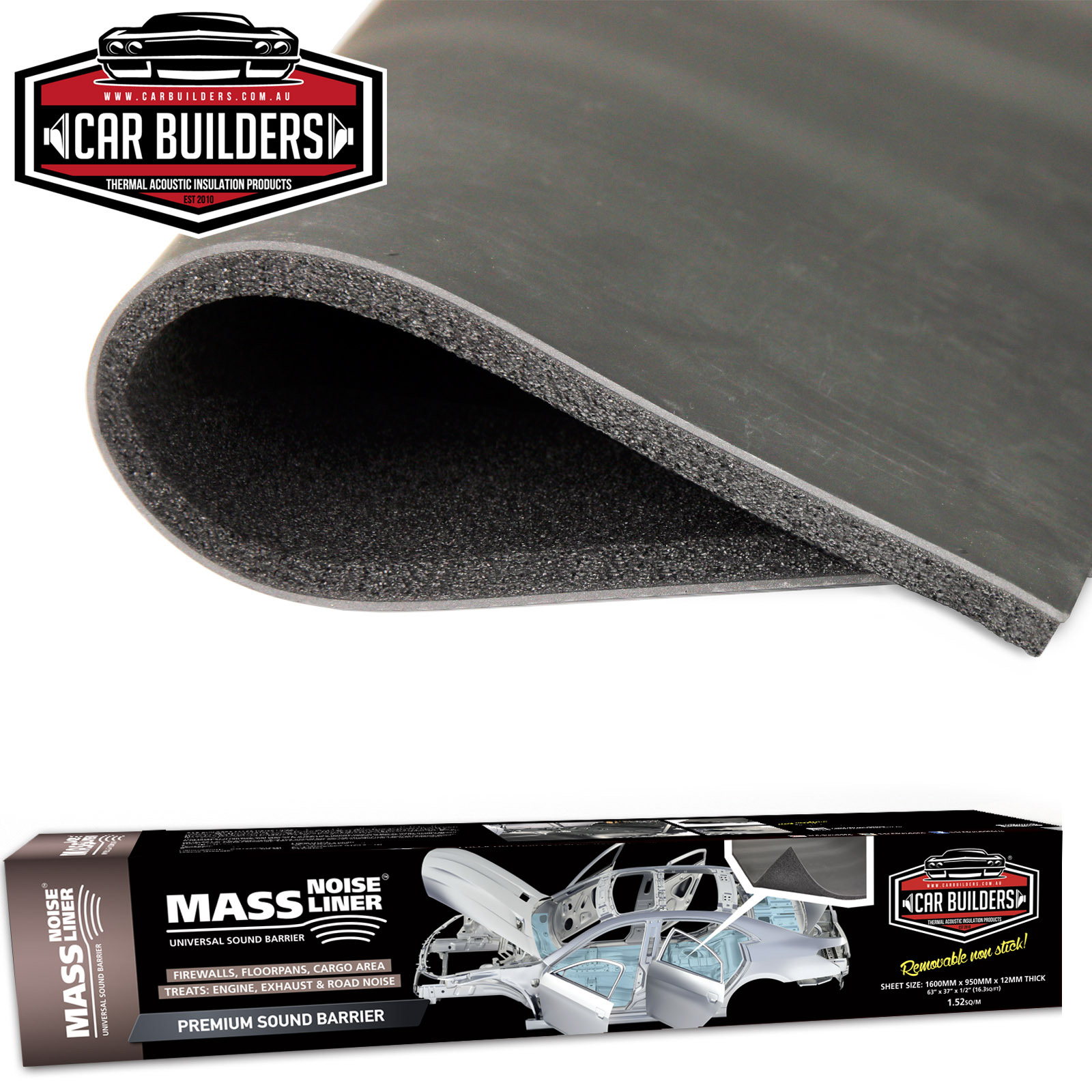

Car Builders Mass Noise Liner is a 12mm thick, heavy weight, acoustic barrier. This product is used over the top of sound deadening (stage 1) which is applied directly onto the sheet metal. Sound deadening stops noise created by panel vibration whereas Mass Noise Liner (stage 2) reduces air borne noise generated from the engine, road etc. This premium carpet underlay is an OEM product used in high-end luxury vehicles. Mass Noise Liner replaces cotton jute or shoddy, creating far superior sound proofing results.

Construction
2mm Mass Loaded vinyl upper layer, coupled with an 10mm closed cell foam to create the most effective means of acoustic blocking. Our flexible closed cell foam is water resistant and offers superior thermal insulation.


Features/Advantages

  • Heavy duty sound blocking
  • Water resistant
  • Removable
  • Cuts with scissor and knife
  • Reduces heat transfer
  • Does not rot or deteriorate

Applications

  • Firewalls
  • Cargo areas
  • Van floors
  • Boot floors

It is not 100% necessary to put Stage 1 Sound Deadener underneath Mass Noise Liner on cargo area floors or van floors due to the metal already being fairly rigid from the ribs. The Mass Noise Liner will be an effective floor sound proofing by itself.



Ideal for:

  • 4WD's and muscle cars - firewall barrier to reduce engine noise
  • Trucks - reduce engine noise and heat on floors and firewalls, great for serviceability
  • Exhaust drone - drop in as a boot liner to reduce exhaust drone particular common in 6's, V8's and flat fours.
  • Engine rooms, compressors etc



Note: due to the weight of our Mass Noise Liner it is not recommended for use on the underside of horizontal surfaces. For these applications you should use our light weight foam such as Acoustic Liner, Water proof carpet underlay, Under bonnet insulation or our 6mm Insul-layer.



(MNL_Parent)

Sheet length: 1600mm
Sheet width: 950mm
Sheet thickness: 12mm (2mm vinyl, 10mm foam)
Weight: 4.5kg/sqm
Temperature resistance: 130°C
Flammability: UL94 V0
Foam flame retardant: Grade B2
Tensile strength: ≥ 2.65Mpa

Ideal for: 4WD's - firewall barrier to reduce engine noise Trucks - reduce engine noise and heat on floors and firewalls, great for serviceability Exhaust drone - drop in as a boot liner to reduce exhaust drone particularly common in 6's, V8's and flat fours. Engine rooms, compressors etc

Customer Reviews

Write a product review

Cancels the noise very well!

By: on 8 August 2022
Product works very well to cancel the noise from the back of my van. It was not too difficult to cut. I ordered 5 sheets and almost all sheets were not cut straight, so this made it a little hard to line up on the floor and ending up with a few more pieces than anticipated. Overall though a great product that cancels the noice and protects the floor.

8/8/2022

Mass noise liner

By: on 21 July 2022
Great high quality material and perfect for stopping noise and vibration coming through from the rear mounted engine in my classic car.

21/7/2022

Easy and removable

By: on 7 April 2021
Great product for 4WDs instead of sticking down a decoupling layer, this all in one can all be removed to dry out if your 4wd goes swimming :)

7/4/2021

Get rid of exhaust drone.

By: on 28 April 2020
Combined this noise liner with stg 1 deadener in the boot of my F6310 to get rid of the booming drone from the 4 inch exhaust. Worked a treat.

28/4/2020

Mass noise liner

By: on 2 January 2018
Installed this over the stage one liner, on the floor. Made a significant difference non travel noise. It raised the floor about 12 mm which was nor biggie in the rear of the Mercedes Sprinter, but it was too thick for the front, which has insulated floor mats.

2/1/2018

Effective and easy to use.

By: on 20 September 2017
Just had this product delivered and have installed it into my Suzuki Swift to try and get the noise levels down in the cabin. The product works well and is very easy to cut and shape as required. There is no odor and it has dropped the noise level average and peak by approximately 5db (using Bosch iNVH). Well done Carbuilders!

20/9/2017

Very Effective

By: on 24 January 2016
I used the mass liner to cover the boot floor and beneath the main cabin carpet. It works well and is easy to instal without too much effort.

24/1/2016
